When removing, be careful not to damage the CPU card.

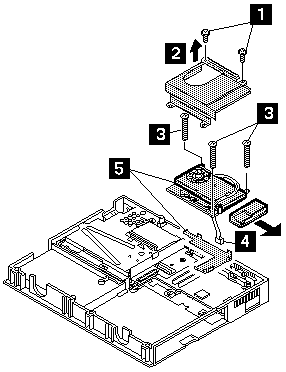

| Step | Size (Quantity) | Torque |
|---|---|---|
| 1 | M2 x 6mm, nylon-coated (2) | 2-3 kgcm |
| 3 | M2 x 18mm, nylon-coated (3) | 2-3 kgcm |
NOTE: Make sure you use the correct screw, and tighten all
screws firmly to the torque shown in the table, if you have a torque screwdriver.
Never use a screw that you removed.
Use a new one. Make sure the screws are tightened firmly.

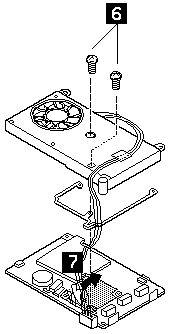

| Step | Size (Quantity) | Torque |
|---|---|---|
| 6 | M2 x 6mm, nylon-coated (2) | 2-3 kgcm |
NOTE: Make sure you use the correct screw, and tighten all
screws firmly to the torque shown in the table, if you have a torque screwdriver.
Never use a screw that you removed.
Use a new one. Make sure the screws are tightened firmly.
When installing
Make sure the connectors are fitted firmly by pressing the corners of the card.
The following figure shows the route of the fan assembly cables:
