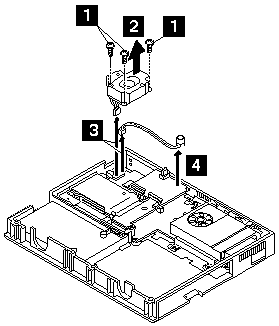

| Step | Size (Quantity) | Torque |
|---|---|---|
| 1 | M2.5 x 12mm, nylon-coated (3) | 3-4 kgcm |
NOTE: Make sure you use the correct screw, and tighten all
screws firmly to the torque shown in the table, if you have a torque screwdriver.
Never use a screw that you removed.
Use a new one. Make sure the screws are tightened firmly.

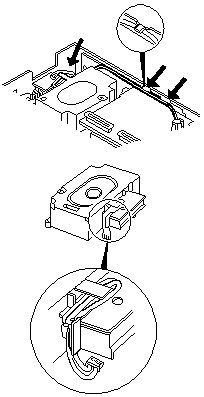

When installing - The following figure shows the route for the microphone and speaker cables:
