NEC TECHNOLOGIES, INC.
CDR-511
|
Device Type |
CD-ROM |
|
Interface |
SCSI-2 |
|
Spin Rate |
4xx |
|
Formats Supported |
CD-XA, CD-DA, CD-I, CD-ROM (Mode 1 & Mode 2), Photo-CD, Video CD, Audio CD |
|

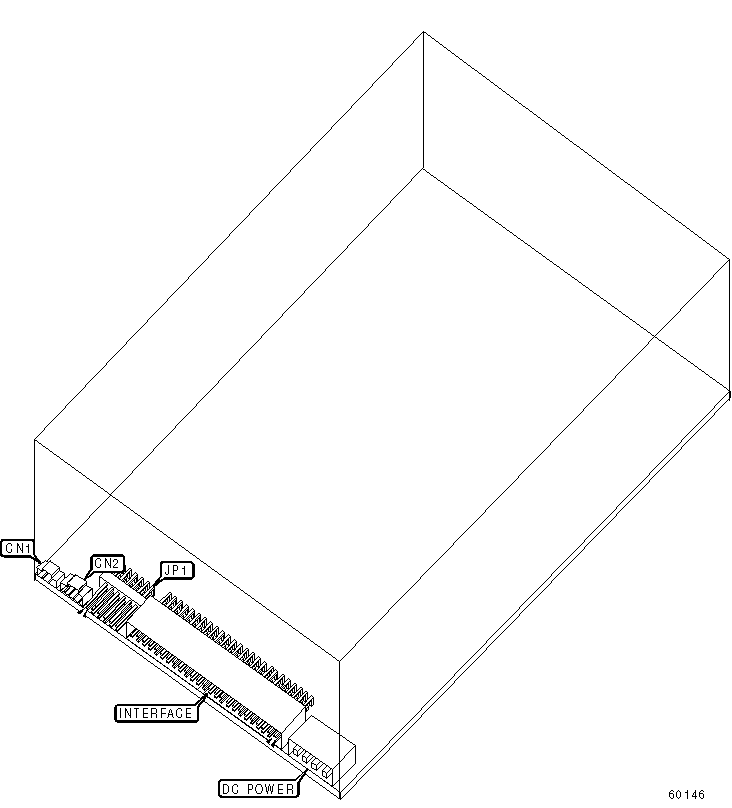

View |
Top |
|
CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
Digital audio line out |
CN1 |
Analog audio line out |
CN2 |
|
USER CONFIGURABLE SETTINGS | |||
|
Setting |
Label |
Position | |
| » |
Factory configured - do not alter |
JP1/4 |
Open |
| » |
Termination enabled |
JP1/5 |
Closed |
|
Termination disabled |
JP1/5 |
Open | |
| » |
SCSI type select SCSI 2 |
JP1/6 |
Closed |
|
SCSI type select SCSI 1 |
JP1/6 |
Open | |
|
DRIVE SELECT ID | ||||
|
Drive ID |
JP1/1 |
JP1/2 |
JP1/3 | |
|
O |
Open |
Open |
Open | |
|
1 |
Closed |
Open |
Open | |
|
2 |
Open |
Closed |
Open | |
|
3 |
Closed |
Closed |
Open | |
|
4 |
Open |
Open |
Closed | |
| » |
5 |
Closed |
Open |
Closed |
|
6 |
Open |
Closed |
Closed | |
|
7 |
Closed |
Closed |
Closed | |
