TMC RESEARCH CORPORATION
PCI54PV4 (VER. 2.10)
| Processor | CX M1/AMD K5/Pentium |
| Processor Speed | 75/90/100/120/133/150/166/180/200MHz |
| Chip Set | OPTI |
| Max. Onboard DRAM | 128MB |
| Cache | 256/512/1024KB |
| BIOS | Unidentified |
| Dimensions | 330mm x 218mm |
| I/O Options | Parallel port, serial ports (2), 32-bit PCI slots (4), green PC connector, floppy drive interface, IDE interfaces (2) |
| NPU Options | None |

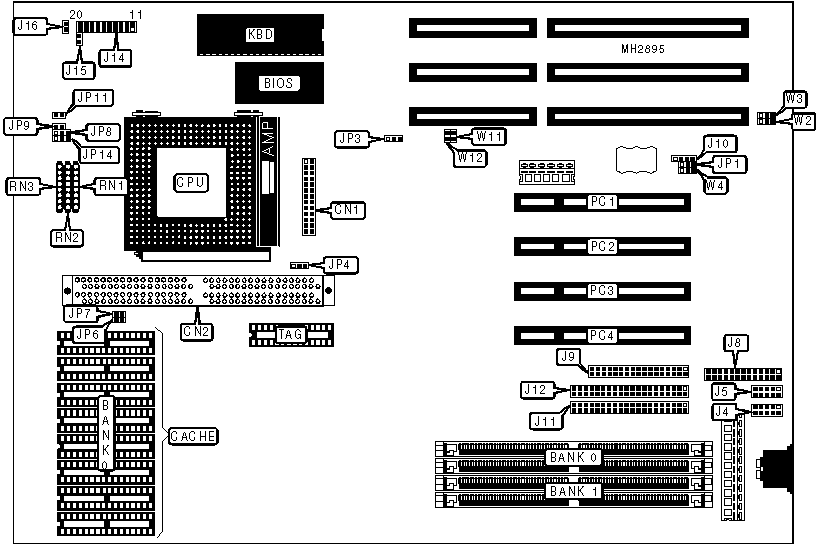

| CONNECTIONS | |||
| Purpose | Location | Purpose | Location |
| Voltage regulator module | CN1 | Green PC connector | J16 |
| Serial port 1 | J4 | Speaker | J14 pins 1 - 5 |
| Serial port 2 | J5 | Turbo switch | J14 pins 7 & 17 |
| Parallel port | J8 | Reset switch | J14 pins 8 & 18 |
| Floppy drive interface | J9 | IDE interface LED | J14 pins 10 & 20 |
| External battery | J10 | Power LED & keylock | J14 pins 11 - 15 |
| IDE interface 1 | J11 | 32-bit PCI slots | PC1 - PC4 |
| IDE interface 2 | J12 | ||
| USER CONFIGURABLE SETTINGS | |||
| Function | Jumper | Position | |
| » | Factory configured - do not alter | J15 | N/A |
| » | CMOS memory normal operation | JP1 | pins 2 & 3 closed |
| CMOS memory clear | JP1 | pins 1 & 2 closed | |
| » | Flash BIOS voltage select 12v | JP3 | pins 1 & 2 closed |
| Flash BIOS voltage select 5v | JP3 | pins 2 & 3 closed | |
| » | Password normal operation | JP9 | Open |
| Password clear | JP9 | Closed | |
| » | BIOS setup normal operation | JP11 | Open |
| BIOS setup access denied | JP11 | Closed | |
| » | Factory configured - do not alter | W4 | N/A |
| DRAM CONFIGURATION | ||
| Size | Bank 0 | Bank 1 |
| 8MB | (2) 1M x 36 | NONE |
| 16MB | (2) 2M x 36 | NONE |
| 16MB | (2) 1M x 36 | (2) 1M x 36 |
| 24MB | (2) 1M x 36 | (2) 2M x 36 |
| 32MB | (2) 4M x 36 | NONE |
| 32MB | (2) 2M x 36 | (2) 2M x 36 |
| 40MB | (2) 1M x 36 | (2) 4M x 36 |
| 48MB | (2) 2M x 36 | (2) 4M x 36 |
| 64MB | (2) 8M x 36 | NONE |
| 64MB | (2) 4M x 36 | (2) 4M x 36 |
| 72MB | (2) 1M x 36 | (2) 8M x 36 |
| 80MB | (2) 2M x 36 | (2) 8M x 36 |
| 96MB | (2) 4M x 36 | (2) 8M x 36 |
| 128MB | (2) 8M x 36 | (2) 8M x 36 |
| CACHE CONFIGURATION | ||
| Size | Bank 0 | TAG |
| 256KB | (8) 32K x 8 | (1) 8K x 8 |
| 512KB | (8) 64K x 8 | (1) 16K x 8 |
| 1MB | (8) 128K x 8 | (1) 32K x 8 |
| CACHE JUMPER CONFIGURATION | ||
| Size | JP6 | JP7 |
| 256KB | Open | Open |
| 512KB | Closed | Open |
| 1MB | Closed | Closed |
| CACHE CONFIGURATION (CACHE MODULE) |
| Note: Cache modules are available in either 256KB or 512KB. If one is installed at CN2, cache chips in Bank 0 must be removed. |
| CACHE JUMPER CONFIGURATION (CACHE MODULE) | |
| Type | JP4 |
| Asynchronous | pins 2 & 3 closed |
| Synchronous | pins 1 & 2 closed |
| CPU TYPE CONFIGURATION | |||
| Type | RN1 | RN2 | RN3 |
| Cyrix M1 | Not installed | Not installed | Installed |
| AMD K5 | Not installed | Installed | Not installed |
| Intel | Installed | Not installed | Not installed |
| CPU SPEED CONFIGURATION | ||||
| Speed | JP8 | JP14 | W11 | W12 |
| 75MHz | pins 1 & 2 closed | pins 1 & 2 closed | Open | Open |
| 90MHz | pins 1 & 2 closed | pins 1 & 2 closed | Open | Closed |
| 100MHz | pins 1 & 2 closed | pins 1 & 2 closed | Closed | Closed |
| 120MHz | pins 2 & 3 closed | pins 1 & 2 closed | Open | Closed |
| 133MHz | pins 2 & 3 closed | pins 1 & 2 closed | Closed | Closed |
| 150MHz | pins 2 & 3 closed | pins 2 & 3 closed | Open | Closed |
| 166MHz | pins 2 & 3 closed | pins 2 & 3 closed | Closed | Closed |
| 180MHz | pins 1 & 2 closed | pins 2 & 3 closed | Open | Closed |
| 200MHz | pins 1 & 2 closed | pins 2 & 3 closed | Closed | Closed |
| DMA CONFIGURATION | ||
| DMA | W2 | W3 |
| DMA 1 | pins 1 & 2 closed | pins 1 & 2 closed |
| DMA 3 | pins 2 & 3 closed | pins 2 & 3 closed |
