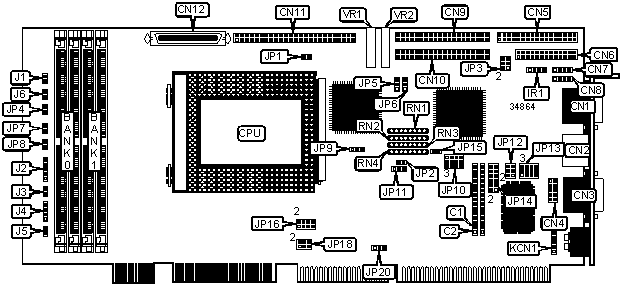

AP-60IFA

LANNER ELECTRONICS, INC.

AP-60IFA

Device Type

Mainboard

Processor

Pentium Pro

Processor Speed

150/166/180/200MHz

Chip Set

Intel

Video Chip Set

Chips & Technologies

Maximum Onboard Memory

512MB (EDO supported)

Maximum Video Memory

2MB

Cache

256KB (located on Pentium Pro CPU)

BIOS

AMI/Award

Dimensions

Unidentified

I/O Options

Floppy drive interface, green PC connector, IDE interfaces (2), SCSI interface, Wide Ultra SCSI interface, parallel port, PS/2 mouse port, serial ports (2), VGA port, IR connector, USB connectors (2), flat panel connectors (2)

NPU Options

None

CONNECTIONS

Purpose

Location

Purpose

Location

Flat panel connector

C1

SCSI interface

CN11

Flat panel connector

C2

Wide Ultra SCSI interface

CN12

VGA port

CN1

IDE interface LED

J1

PS/2 mouse port

CN2

Power LED & keylock

J2

Serial port 1

CN3

Turbo LED

J3

Serial port 2

CN4

Speaker

J4

Floppy drive interface

CN5

Reset switch

J5

Parallel port

CN6

SCSI interface LED

J6

USB connector 1

CN7

Green PC connector

JP4

USB connector 2

CN8

IR connector

IR1

IDE interface 1

CN9

Auxiliary keyboard connector

KCN1

IDE interface 2

CN10

USER CONFIGURABLE SETTINGS

Function

Label

Position

SCSI termination enabled

JP1

Open

SCSI termination disabled

JP1

Closed

»

VEE voltage select +12v - +35v

JP5

Pins 2 & 3 closed

VEE voltage select -12v - -34v

JP5

Pins 1 & 2 closed

»

Contrast voltage enabled

JP6

Pins 1 & 2 closed

VEE voltage enabled

JP6

Pins 2 & 3 closed

»

Factory configured - do not alter

JP12

Open

»

Factory configured - do not alter

JP13

Pins 2 & 3, 5 & 6, 8 & 9 closed

»

Factory configured - do not alter

JP14

Pins 1 & 2, 3 & 4, 5 & 6, 7 & 8, 9 & 10, 11 & 12 closed

»

PS/2 mouse IRQ12 enabled

JP15

Closed

PS/2 mouse IRQ12 disabled

JP15

Open

»

Flash BIOS voltage select 5v

JP20

Pins 2 & 3 closed

Flash BIOS voltage select 12v

JP20

Pins 1 & 2 closed

»

Factory configured - do not alter

RN1

Unidentified

»

Factory configured - do not alter

RN2

Unidentified

»

Factory configured - do not alter

RN3

Unidentified

»

Factory configured - do not alter

RN4

Unidentified

»

Factory configured - do not alter

VR1

Unidentified

»

Factory configured - do not alter

VR1

Unidentified

SIMM CONFIGURATION

Size

Bank 0

Bank 1

8MB

(2) 1M x 36

None

16MB

(2) 2M x 36

None

16MB

(2) 1M x 36

(2) 1M x 36

24MB

(2) 2M x 36

(2) 1M x 36

32MB

(2) 4M x 36

None

32MB

(2) 2M x 36

(2) 2M x 36

40MB

(2) 4M x 36

(2) 1M x 36

48MB

(2) 4M x 36

(2) 2M x 36

64MB

(2) 8M x 36

None

64MB

(2) 4M x 36

(2) 4M x 36

72MB

(2) 8M x 36

(2) 1M x 36

80MB

(2) 8M x 36

(2) 2M x 36

96MB

(2) 8M x 36

(2) 4M x 36

128MB

(2) 8M x 36

(2) 8M x 36

128MB

(2) 16M x 36

None

136MB

(2) 16M x 36

(2) 1M x 36

144MB

(2) 16M x 36

(2) 2M x 36

160MB

(2) 16M x 36

(2) 4M x 36

192MB

(2) 16M x 36

(2) 8M x 36

256MB

(2) 32M x 36

None

256MB

(2) 16M x 36

(2) 16M x 36

264MB

(2) 32M x 36

(2) 1M x 36

272MB

(2) 32M x 36

(2) 2M x 36

288MB

(2) 32M x 36

(2) 4M x 36

320MB

(2) 32M x 36

(2) 8M x 36

384MB

(2) 32M x 36

(2) 16M x 36

512MB

(2) 32M x 36

(2) 32M x 36

Note: Board accepts EDO memory.

CACHE CONFIGURATION

Note: 256KB cache is located on the Pentium Pro CPU.

VIDEO MEMORY CONFIGURATION

Note: Board accepts 1MB/2MB video memory. The location is unidentified.

CPU SPEED SELECTION

CPU speed

Clock speed

Multiplier

JP7

JP8

JP16

JP18

150MHz

60MHz

2.5x

Open

Closed

1 & 2, 3 & 4, 5 & 6

1 & 2

166MHz

66MHz

2.5x

Closed

Open

1 & 2, 3 & 4, 5 & 6

Open

180MHz

60MHz

3x

Open

Closed

1 & 2, 3 & 4, 7 & 8

1 & 2

200MHz

66MHz

3x

Closed

Open

1 & 2, 3 & 4, 7 & 8

Open

Note: Pins designated should be in the closed position.

FLAT PANEL SELECTION

Setting

JP3

1024 x 768 DSTN

Pins 1 & 2, 3 & 4, 5 & 6 closed

1280 x 1024 TFT

Pins 3 & 4, 5 & 6 closed

640 x 480 DSTN

Pins 1 & 2, 5 & 6 closed

800 x 600 DSTN

Pins 5 & 6 closed

640 x 480 Sharp TFT

Pins 1 & 2, 3 & 4 closed

»
640 x 480 18 bit TFT

Pins 3 & 4 closed

1024 x 768 TFT

Pins 1 & 2 closed

800 x 600 TFT

Open

WATCHDOG TIMER ACTIVE SELECTION

Time out

JP10

.5 sec

Pins 2 & 3 closed

1 sec

Pins 5 & 6 closed

2 sec

Pins 8 & 9 closed

»
4 sec

Pins 11 & 12 closed

8 sec

Pins 10 & 11 closed

16 sec

Pins 7 & 8 closed

32 sec

Pins 4 & 5 closed

64 sec

Pins 1 & 2 closed

WATCHDOG TIMER ACTIVE SELECTION

Time out

JP11

»
Reset system

Pins 1 & 2 closed

NMI system

Pins 2 & 3 closed

Disabled

Open

SCSI SELECTION

Setting

JP2

JP9

»
8 bit

Open

Pins 1 & 2 closed

Wide

Closed

Pins 1 & 2 closed

Ultra Wide

Closed

Pins 2 & 3 closed

Device Type	Mainboard
Processor	Pentium Pro
Processor Speed	150/166/180/200MHz
Chip Set	Intel
Video Chip Set	Chips & Technologies
Maximum Onboard Memory	512MB (EDO supported)
Maximum Video Memory	2MB
Cache	256KB (located on Pentium Pro CPU)
BIOS	AMI/Award
Dimensions	Unidentified
I/O Options	Floppy drive interface, green PC connector, IDE interfaces (2), SCSI interface, Wide Ultra SCSI interface, parallel port, PS/2 mouse port, serial ports (2), VGA port, IR connector, USB connectors (2), flat panel connectors (2)
NPU Options	None

CONNECTIONS
Purpose	Location	Purpose	Location
Flat panel connector	C1	SCSI interface	CN11
Flat panel connector	C2	Wide Ultra SCSI interface	CN12
VGA port	CN1	IDE interface LED	J1
PS/2 mouse port	CN2	Power LED & keylock	J2
Serial port 1	CN3	Turbo LED	J3
Serial port 2	CN4	Speaker	J4
Floppy drive interface	CN5	Reset switch	J5
Parallel port	CN6	SCSI interface LED	J6
USB connector 1	CN7	Green PC connector	JP4
USB connector 2	CN8	IR connector	IR1
IDE interface 1	CN9	Auxiliary keyboard connector	KCN1
IDE interface 2	CN10

USER CONFIGURABLE SETTINGS
Function		Label	Position
	SCSI termination enabled	JP1	Open
	SCSI termination disabled	JP1	Closed
»	VEE voltage select +12v - +35v	JP5	Pins 2 & 3 closed
	VEE voltage select -12v - -34v	JP5	Pins 1 & 2 closed
»	Contrast voltage enabled	JP6	Pins 1 & 2 closed
	VEE voltage enabled	JP6	Pins 2 & 3 closed
»	Factory configured - do not alter	JP12	Open
»	Factory configured - do not alter	JP13	Pins 2 & 3, 5 & 6, 8 & 9 closed
»	Factory configured - do not alter	JP14	Pins 1 & 2, 3 & 4, 5 & 6, 7 & 8, 9 & 10, 11 & 12 closed
»	PS/2 mouse IRQ12 enabled	JP15	Closed
	PS/2 mouse IRQ12 disabled	JP15	Open
»	Flash BIOS voltage select 5v	JP20	Pins 2 & 3 closed
	Flash BIOS voltage select 12v	JP20	Pins 1 & 2 closed
»	Factory configured - do not alter	RN1	Unidentified
»	Factory configured - do not alter	RN2	Unidentified
»	Factory configured - do not alter	RN3	Unidentified
»	Factory configured - do not alter	RN4	Unidentified
»	Factory configured - do not alter	VR1	Unidentified
»	Factory configured - do not alter	VR1	Unidentified

SIMM CONFIGURATION
Size	Bank 0	Bank 1
8MB	(2) 1M x 36	None
16MB	(2) 2M x 36	None
16MB	(2) 1M x 36	(2) 1M x 36
24MB	(2) 2M x 36	(2) 1M x 36
32MB	(2) 4M x 36	None
32MB	(2) 2M x 36	(2) 2M x 36
40MB	(2) 4M x 36	(2) 1M x 36
48MB	(2) 4M x 36	(2) 2M x 36
64MB	(2) 8M x 36	None
64MB	(2) 4M x 36	(2) 4M x 36
72MB	(2) 8M x 36	(2) 1M x 36
80MB	(2) 8M x 36	(2) 2M x 36
96MB	(2) 8M x 36	(2) 4M x 36
128MB	(2) 8M x 36	(2) 8M x 36
128MB	(2) 16M x 36	None
136MB	(2) 16M x 36	(2) 1M x 36
144MB	(2) 16M x 36	(2) 2M x 36
160MB	(2) 16M x 36	(2) 4M x 36
192MB	(2) 16M x 36	(2) 8M x 36
256MB	(2) 32M x 36	None
256MB	(2) 16M x 36	(2) 16M x 36
264MB	(2) 32M x 36	(2) 1M x 36
272MB	(2) 32M x 36	(2) 2M x 36
288MB	(2) 32M x 36	(2) 4M x 36
320MB	(2) 32M x 36	(2) 8M x 36
384MB	(2) 32M x 36	(2) 16M x 36
512MB	(2) 32M x 36	(2) 32M x 36
Note: Board accepts EDO memory.

CPU SPEED SELECTION
CPU speed	Clock speed	Multiplier	JP7	JP8	JP16	JP18
150MHz	60MHz	2.5x	Open	Closed	1 & 2, 3 & 4, 5 & 6	1 & 2
166MHz	66MHz	2.5x	Closed	Open	1 & 2, 3 & 4, 5 & 6	Open
180MHz	60MHz	3x	Open	Closed	1 & 2, 3 & 4, 7 & 8	1 & 2
200MHz	66MHz	3x	Closed	Open	1 & 2, 3 & 4, 7 & 8	Open
Note: Pins designated should be in the closed position.

FLAT PANEL SELECTION
Setting		JP3
	1024 x 768 DSTN	Pins 1 & 2, 3 & 4, 5 & 6 closed
	1280 x 1024 TFT	Pins 3 & 4, 5 & 6 closed
	640 x 480 DSTN	Pins 1 & 2, 5 & 6 closed
	800 x 600 DSTN	Pins 5 & 6 closed
	640 x 480 Sharp TFT	Pins 1 & 2, 3 & 4 closed
»	640 x 480 18 bit TFT	Pins 3 & 4 closed
	1024 x 768 TFT	Pins 1 & 2 closed
	800 x 600 TFT	Open

WATCHDOG TIMER ACTIVE SELECTION
Time out		JP10
	.5 sec	Pins 2 & 3 closed
	1 sec	Pins 5 & 6 closed
	2 sec	Pins 8 & 9 closed
»	4 sec	Pins 11 & 12 closed
	8 sec	Pins 10 & 11 closed
	16 sec	Pins 7 & 8 closed
	32 sec	Pins 4 & 5 closed
	64 sec	Pins 1 & 2 closed

WATCHDOG TIMER ACTIVE SELECTION
Time out		JP11
»	Reset system	Pins 1 & 2 closed
	NMI system	Pins 2 & 3 closed
	Disabled	Open

SCSI SELECTION
Setting		JP2	JP9
»	8 bit	Open	Pins 1 & 2 closed
	Wide	Closed	Pins 1 & 2 closed
	Ultra Wide	Closed	Pins 2 & 3 closed
