MICRO-STAR INTERNATIONAL CO., LTD.
MS-5120
| Processor | Pentium |
| Processor Speed | 75/90/100/120/133MHz |
| Chip Set | Intel |
| Max. Onboard DRAM | 128MB |
| Cache | 256KB |
| BIOS | AMI |
| Dimensions | 260mm x 220mm |
| I/O Options | Parallel port, serial ports (2), IDE interfaces (2), 32-bit PCI slots (3), green PC connector, floppy drive interface, PS/2 mouse connector |
| NPU Options | None |

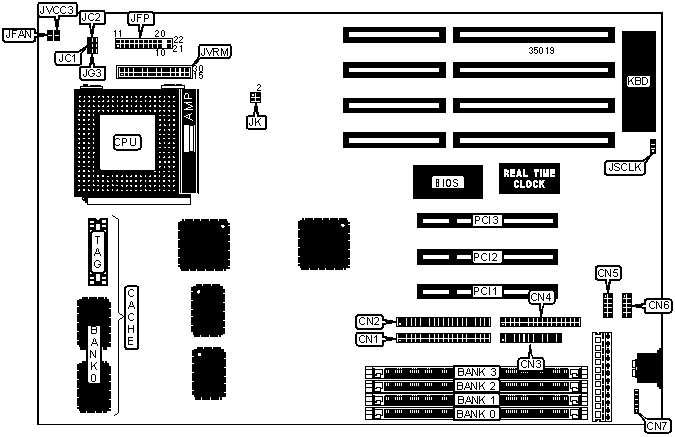

| CONNECTIONS | |||
| Purpose | Location | Purpose | Location |
| IDE interface (primary) | CN1 | Speaker | JFP pins 7 - 10 |
| IDE interface (secondary) | CN2 | Turbo LED | JFP pins 12 & 13 |
| Floppy drive interface | CN3 | Turbo switch | JFP pins 15 - 17 |
| Parallel port | CN4 | Reset switch | JFP pins 19 & 20 |
| Serial port 2 | CN5 | IDE interface LED | JFP pins 21 & 22 |
| Serial port 1 | CN6 | Green PC connector | JG3 |
| PS/2 Mouse connector | CN7 | 32-bit PCI slots | PCI1 - PCI3 |
| Chassis fan power | JFAN | Voltage regulator module | JVRM |
| Power LED & keylock | JFP pins 1 - 5 | ||
| USER CONFIGURABLE SETTINGS | |||
| Function | Jumper | Position | |
| » | PCI bus clock/3 | JSCLK | pins 1 & 2 closed |
| PCI bus clock/4 | JSCLK | pins 2 & 3 closed | |
| DRAM CONFIGURATION | ||||
| Size | Bank 0 | Bank 1 | Bank 2 | Bank 3 |
| 4MB | (1) 1M x 36 | NONE | NONE | NONE |
| 4MB | NONE | NONE | (1) 1M x 36 | NONE |
| 8MB | (1) 2M x 36 | NONE | NONE | NONE |
| 8MB | NONE | NONE | (1) 2M x 36 | NONE |
| 8MB | (1) 1M x 36 | (1) 1M x 36 | NONE | NONE |
| 8MB | NONE | NONE | (1) 1M x 36 | (1) 1M x 36 |
| 16MB | (1) 4M x 36 | NONE | NONE | NONE |
| 16MB | NONE | NONE | (1) 4M x 36 | NONE |
| 16MB | (1) 2M x 36 | (1) 2M x 36 | NONE | NONE |
| 16MB | (1) 1M x 36 | (1) 1M x 36 | (1) 1M x 36 | (1) 1M x 36 |
| 16MB | NONE | NONE | (1) 2M x 36 | (1) 2M x 36 |
| 24MB | (1) 1M x 36 | (1) 1M x 36 | (1) 2M x 36 | (1) 2M x 36 |
| 24MB | (1) 2M x 36 | (1) 2M x 36 | (1) 1M x 36 | (1) 1M x 36 |
| 32MB | (1) 8M x 36 | NONE | NONE | NONE |
| 32MB | NONE | NONE | (1) 8M x 36 | NONE |
| 32MB | (1) 4M x 36 | (1) 4M x 36 | NONE | NONE |
| 32MB | (1) 2M x 36 | (1) 2M x 36 | (1) 2M x 36 | (1) 2M x 36 |
| 32MB | NONE | NONE | (1) 4M x 36 | (1) 4M x 36 |
| 40MB | (1) 1M x 36 | (1) 1M x 36 | (1) 4M x 36 | (1) 4M x 36 |
| 40MB | (1) 4M x 36 | (1) 4M x 36 | (1) 1M x 36 | (1) 1M x 36 |
| 48MB | (1) 4M x 36 | (1) 4M x 36 | (1) 2M x 36 | (1) 2M x 36 |
| 48MB | (1) 2M x 36 | (1) 2M x 36 | (1) 4M x 36 | (1) 4M x 36 |
| 64MB | (1) 16M x 36 | NONE | NONE | NONE |
| 64MB | NONE | NONE | (1) 16M x 36 | NONE |
| 64MB | (1) 8M x 36 | (1) 8M x 36 | NONE | NONE |
| 64MB | (1) 4M x 36 | (1) 4M x 36 | (1) 4M x 36 | (1) 4M x 36 |
| 64MB | NONE | NONE | (1) 8M x 36 | (1) 8M x 36 |
| 72MB | (1) 1M x 36 | (1) 1M x 36 | (1) 8M x 36 | (1) 8M x 36 |
| 72MB | (1) 8M x 36 | (1) 8M x 36 | (1) 1M x 36 | (1) 1M x 36 |
| 80MB | (1) 2M x 36 | (1) 2M x 36 | (1) 8M x 36 | (1) 8M x 36 |
| 80MB | (1) 8M x 36 | (1) 8M x 36 | (1) 2M x 36 | (1) 2M x 36 |
| 96MB | (1) 4M x 36 | (1) 4M x 36 | (1) 8M x 36 | (1) 8M x 36 |
| 96MB | (1) 8M x 36 | (1) 8M x 36 | (1) 4M x 36 | (1) 4M x 36 |
| 128MB | (1) 32M x 36 | NONE | NONE | NONE |
| 128MB | NONE | NONE | (1) 32M x 36 | NONE |
| 128MB | (1) 16M x 36 | (1) 16M x 36 | NONE | NONE |
| 128MB | (1) 8M x 36 | (1) 8M x 36 | (1) 8M x 36 | (1) 8M x 36 |
| 128MB | NONE | NONE | (1) 16M x 36 | (1) 16M x 36 |
| CACHE CONFIGURATION |
| Note: Cache is factory installed and not configurable. |
| CPU SPEED CONFIGURATION | |
| Speed | JK |
| 75MHz | pins 1 & 3, 2 & 4 closed |
| 90MHz | pins 1 & 3 closed |
| 100MHz | pins 2 & 4 closed |
| 120MHz | pins 1 & 3 closed |
| 133MHz | pins 2 & 4 closed |
| CPU VOLTAGE CONFIGURATION | |
| Voltage | JVCC3 |
| 3.4v | Closed |
| 3.5v | Open |
| BUS/CORE RATIO CONFIGURATION | |||
| P54C/CQS/CS | P54CS POR(C-step) | JC1 | JC2 |
| 2/3 | 2/3 | Open | Open |
| 1/2 | 1/2 | Closed | Open |
| 1/3 | 1/3 | Open | Closed |
| 1/4 | 2/5 | Closed | Closed |
| VOLTAGE REGULATOR MODULE PIN IDENTIFICATION | |||
| Pin | Purpose | Pin | Purpose |
| 1 | VSS | 16 | VSS |
| 2 | VSS | 17 | VSS |
| 3 | ND | 18 | V/IO |
| 4 | V/IO | 19 | V/IO |
| 5 | 3.3v | 20 | 3.3v |
| 6 | 3.3v | 21 | 3.3v |
| 7 | VCORE | 22 | VCORE |
| 8 | VCORE | 23 | VCORE |
| 9 | VSS | 24 | VCORE |
| 10 | VCORE | 25 | VCORE |
| 11 | PRGOOD | 26 | UPVRM# |
| 12 | SENSE | 27 | DISABLE |
| 13 | VSS | 28 | VSS |
| 14 | 5v | 29 | 5v |
| 15 | 5v | 30 | 5v |
| Note: The purpose of the Voltage Regulator Module is to allow different voltage processors to be supported by the motherboard. | |||
