Data bus:	16-bit ISA
Size:	Half-length, full-height card
Hard drive supported:	Two IDE(AT) drives
Floppy drives supported:	Two 360KB, 720KB, 1.2MB, or 1.44MB drives

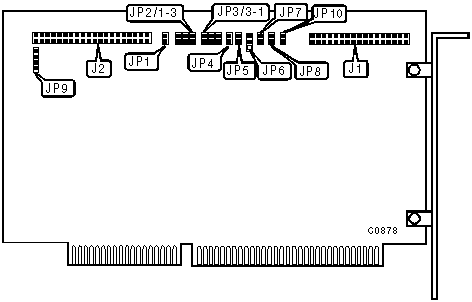

CONNECTIONS
Function	Location
34-pin cable connector - floppy drive	J1
40-pin IDE(AT) connector	J2
4-pin connector - drive active LED	JP9

USER CONFIGURABLE SETTINGS
Function		Location	Setting
»	Factory configured - do not alter	JP1	open
»	Factory configured - do not alter	JP2/1-3	open
»	Factory configured - do not alter	JP3/1-3	open
»	Factory configured - do not alter	JP4	open
»	Factory configured - do not alter	JP5	open
»	Polled BIOS	JP6/pins 2 & 3	closed
	BIOS is interrupt driven	JP6/pins 1 & 2	closed
»	Factory configured - do not alter	JP7	open
»	Floppy drive interface enabled	JP8	closed
	Floppy drive interface disabled	JP8	open
»	Factory configured - do not alter	JP10	closed
