ARCO COMPUTER PRODUCTS
DUPLIDISK
|
Processor |
Unidentified |
|
Data Bus |
8-bit ISA (for power and setup only) |
|
Card Size |
Half-length, half-height card |
|
Hard Drives supported |
Four EIDE/IDE (AT) drives |
|
Floppy drives supported |
None |
|
RAID levels supported |
1 |
|

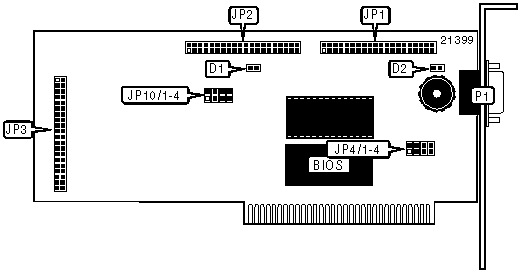

CONNECTIONS | |||
|
Function |
Location |
Function |
Location |
|
2-pin connector - primary drive active LED |
D1 |
40-pin primary IDE(AT) connector |
JP2 |
|
2-pin connector - mirror drive active LED |
D2 |
40-pin IDE(AT) connector - host IDE interface to DupliDisk |
JP3 |
|
40-pin mirror IDE(AT) connector |
JP1 |
9-pin serial port 1 - external |
P1 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Label |
Position | |
| » |
Factory configured - do not alter |
JP10 |
Reserved |
|
BIOS SEGMENT ADDRESS CONFIGURATION | |||||
|
Segment Address |
JP4/1 |
JP4/2 |
JP4/3 |
JP4/4 | |
| » |
C800h-CBFFh |
Closed |
Open |
Closed |
Closed |
|
CC00h-CEFFh |
Closed |
Open |
Open |
Closed | |
|
D000h-D3FFh |
Open |
Closed |
Closed |
Closed | |
|
D400h-D7EEh |
Open |
Closed |
Open |
Closed | |
|
D800h-DBFFh |
Open |
Open |
Closed |
Closed | |
|
DC00h-DEFFh |
Open |
Open |
Open |
Closed | |
|
Disabled |
Open |
Open |
Open |
Open | |
