BUSLOGIC, INC.
BT-946C
|
| |
|
Data bus: |
32-bit, PCI-bus |
|
Size: |
Full-length, full-height card |
|
Hard drive supported: |
Up to seven SCSI devices |
|
Floppy drives supported: |
None |
|

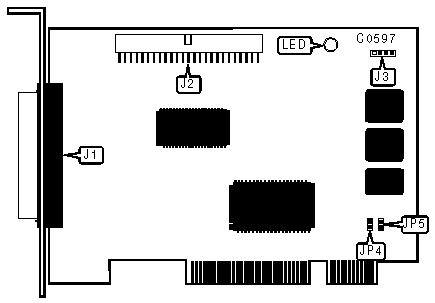

CONNECTIONS | |
|
Function |
Location |
|
50-pin connector - External SCSI-2 interface |
J1 |
|
50-pin connector - Internal SCSI interface |
J2 |
|
4-pin connector - Drive activity LED |
J3 |
|
BIOS ADDRESS CONFIGURATION | |||
|
BIOS Address |
JP4 |
JP5 | |
| » |
DC00 |
Closed |
Closed |
|
C800 |
Closed |
Open | |
|
D800 |
Open |
Closed | |
|
System BIOS |
Open |
Open | |
|
MISCELLANEOUS TECHNICAL NOTE |
|
Note:The BT-946C can be installed in a master slot only, not a slave slot. |
