| Item | Function | Connected to... |
|---|---|---|
| 1 | Telephone line-in | Telephone line |
| 2 | Telephone line-out Some modem adapters may come without this jack. |
Telephone set |
| 3 | Voice-in/speaker-out connector | System board Machine type 2170: CN21 Machine type 2171 and 2172: CN12 |
NOTE: Care should be taken while connecting the voice-in/speaker-out connector.
The longer exposed end (about 15mm) of the cable should be connected to the modem card.
The other end should be connected to the system board.

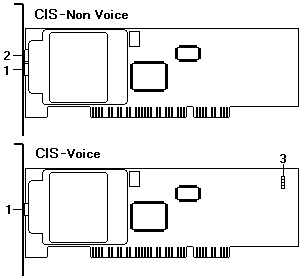

CIS Factory-Installed Modem Card Connector Functions.
| Item | Function | Connected to... |
|---|---|---|
| 1 | Telephone line-in | Telephone line |
| 2 | Telephone line-out Some modem adapters may come without this jack. |
Telephone set |
| 3 | Voice-in/speaker-out connector | System board Machine type 2170: CN21 Machine type 2171 and 2172: CN12 |
NOTE: Care should be taken while connecting the voice-in/speaker-out connector.
The longer exposed end (about 15mm) of the cable should be connected to the modem card.
The other end should be connected to the system board.
