Bay 4, 5 (3.5-Inch Diskette Drives) - (Aptiva 2172 - SL-A)
Bay 4, 5 (3.5-In. Diskette Drives)

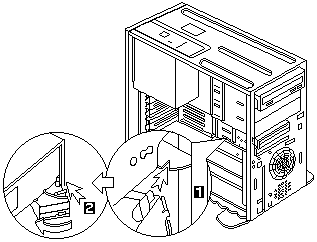

- Disconnect the cables (note location of cables).
- Press the lever and rotate outward.
- Pull carefully and slowly as soon as the warning arrow appears.
- The drive frame becomes free after the line behind the arrow appears.
Remove the frame from the chassis.
NOTE: Reinstall The 3.5-in Drive Frame.
- Align the front notch of the drive frame with the system chassis
- Align the top rail of the drive frame with the system chassis and swing inward until it "clicks" to lock.
- Re-attach the power and signal cables to the drives.
