Pentium® III Processor Module
Pentium® III Processor Module
The Pentium® III Processor Module comes in one SECC2 package. SECC2 stands for Single Edge Cartridge CPU 2.
Removing the Pentium® III CPU Module
Follow these steps to remove the Pentium® III CPU module from the slot.
NOTE: Determine the type of processor you are installing and make sure the
jumpers are set correctly.
Run the Setup Utility after correctly installing a processor.
-ATTENTION- Processors are sensitive to static discharge.
- Unlock the latches that secure the processor module.
- Firmly hold the processor module and pull it out of the socket.
Pentium® III Processor Installation
Follow these steps to install the Pentium® III processor module with fan sink to the socket
on the system board.
- Locate the retention mechanism around the processor socket. Fold out the retainers.
- With the processor module electrical contacts pointing downward, align the processor
to the posts of the retention mechanism, then lower it down.
-CAUTION- The electrical contacts of the Pentium® III module
are slotted in such a way that the module only fits in one direction.
Make sure that the module groove matches the one on the processor socket.
Installing the Processor Heat Sink and Fan
The Pentium® III processor module with holes on one side to hold the clips of the heat sink and fan.
The upper set of holes (near the latches) on the processor are wider and should match the wider ends of the clips on the heat sink.
The lower set of holes are smaller and should match the narrow ends of the heat sink clips.
SECC2 Package Installation
Follow these steps when installing the heat sink and fan to the Pentium® III processor module:
- Remove the thermal tape protector at the back of the fan sink.
- Attach the fan sink to the PC board side of the Pentium® III processor.
- Press the fastener towards the fan sink side to lock the fan sink.

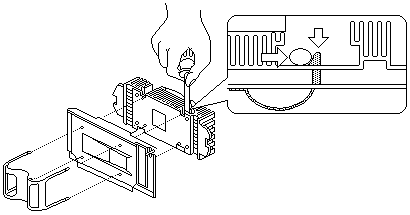

To remove the SECC2 type fan sink, use a screw driver to slide the fastener nodes outward to unlock
the fan sink from the processor, then carefully remove the fan sink from the processor.
