System Board (Aptiva 2165 - SL-A)
System Board

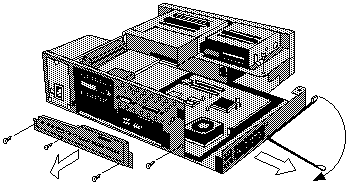

To remove the system board from the system:
- Remove the three securing screws of the system board tray and I/O bracket.
- Push the I/O bracket outward from the case to remove it.
- To remove the system board and the tray, pull the lever so that it rotates toward you.
For Jumper / Locations see > System Board Locations
