Identifying the Parts of the System Unit (Aptiva 2165 - SL-A)

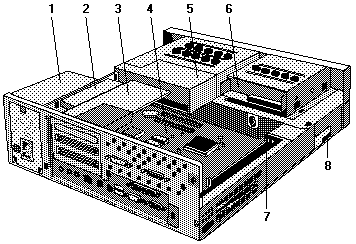

Identifying the Parts of the System Unit
This computer system has 3 bays, each bay has an factory-installed drive in it.
The devices are 3.5-Inch Diskette, 40 X CD-ROM drive and 4 GB (some models have 6 GB or 8 GB) hard disk.
Diskette drives in this unit use the standard diskette advanced technology (AT) Interface.
Hard disk and CD-ROM drives in this unit use an integrated drive Electronics (IDE) AT interface.
This computer supports the American National Standard Institute (ANSI) standard for AT attachment disk drives and CD-ROMs.
This system has 3 interface cards slots for adapter card expansion.
All of them are Peripheral Component Interconnect (PCI) interfaces.
Some models of this system have a 10/100 Mbps Ethernet port on board.
Some models of this system have a DFP (Digital flat panel) port.
- Power Supply - This is a 95-watt switching power supply.
- IO slot - The riser card has 3 PCI slots.
- Modem card - This machine has a factory-installed Data/Fax card for data transmission
- System board - see System Board Locations for detail.
- CD-ROM Drive - This machine has a factory-installed 40 X CDROM drive.
- Floppy Diskette Drive - This machine has a factory-installed 3.5' 1.44MB Floppy drive.
- Hard Disk Drive - This machine has a factory-installed 5.25-Inch 4 GB (6 GB or 8 GB) hard disk drive.
- Speaker - This system has 2 speakers inside.
