AT-IDE-EIDE (3.5 and 5.25-Inch) HDD Jumper Setting

^{IBM-AUSTRIA - PC-HW-Support 30 Aug 1999}

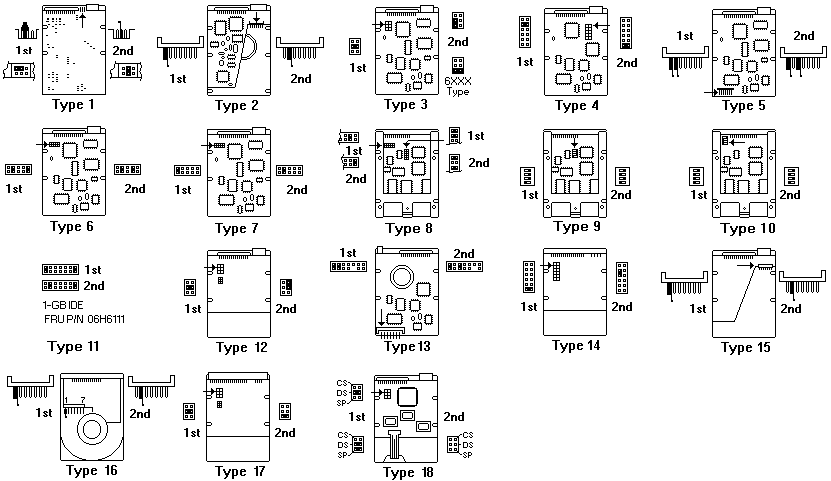

AT-IDE HD Jumper setting (HD-pictures above)

Drive Jumper marked 1st for primary (Master) / 2nd is secondary (Slave) drive in machine.

Type 1 170MB 340MB 424MB 850MB 2.0GB and 2.5GB
Drives with Tabs
Type 2 170MB 270MB 363MB 540MB 727MB 1.2GB and 1.7GB
(Deskstar) Drives with Tabs
Type 3 270MB and 540MB Drives with Jumpers
Type 4 527MB Drive with Jumper
Type 5 85MB and 170MB Drives with Tabs
Type 6 129MB Drive with Jumper
Type 7 170MB and 211MB Drives with Jumper
Type 8 40MB and 80MB Drives with Jumpers
Type 9 40MB Drive with Switches
Type 10 80MB Drive with Switches
Type 11 1GB Drive FRU P/N 06H6111
Type 12 270MB 850MB and 1.2GB Drives (Level 2)
Type 13 170MB Drive
Type 14 1.6GB and 2.0GB Drives
Type 15 1.6GB and 3.2GB Drives
Type 16 3.24GB Drive (Deskstar 3)
Pin 1 = primary
Pin 2 = secondary
Pin 3 = autom. assign primary or secondary (if supported)
Pin 5 = disable write cache
Pin 4, 6 and 7 = reserved (do not connect)
Type 17 850MB and 1.2GB Drives
Type 18 1.2GB up to 3.2GB Drives used on 2136 Aptiva
CS = Cable select
DS = Drive select
SP = Slave present
