15-pin - Joystick-MIDI-port Layout

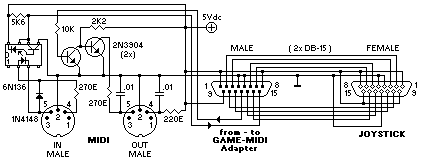

Joystick-MIDI-Port Cable (Sample only)




15-pin - Joystick-MIDI-Port Adapter (female) Connector




15-pin - Joystick-MIDI-port Adapter Connector - Pin-layout

Pin Signal I/O Pin Signal I/O
1 +5 Vdc N/A 9 +5 Vdc N/A
2 Joystick A - Button 1 I 10 Joystick B - Button 1 I
3 Joystick A - X-pos I 11 Joystick B - X-pos I
4 Signal GND N/A 12 MIDI OUT O
5 Signal GND N/A 13 Joystick B - Y-pos I
6 Joystick A - Y-pos I 14 Joystick B - Button 2 I
7 Joystick A - Button 2 I 15 MIDI IN I
8 +5 Vdc N/A - - -
