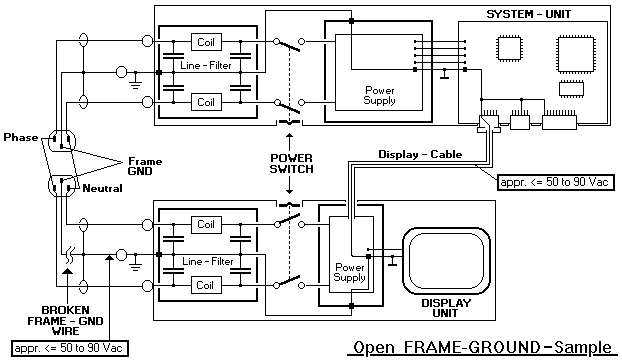

Missing - FRAME-GROUND sample
Missing - FRAME-GROUND sample
In the above sample the Display Frame ground wire is broken.
Primary this is an SAFETY HAZARD ! and MUST be REPAIRED !
(e.g. in the above sample, you MUST replace the line cord.)
If LINE-GROUND is missing
- You will measure appr. 50 Vac (110 Vac line voltage)
or appr. 95 Vac (220 Vac line voltage) on SIGNAL-GROUND wires.
- Such a condition, is NOT ACCEPTABLE for HUMANS, and will
DESTROY electr. Components or connected equipment.
REMEMBER - normally you should
- DISCONNECT ALL-LINE-Cords first, and then disconnect SIGNAL-Cable(s)
- or -
- CONNECT ALL-SIGNAL-CABLE(s) first, and then connect the LINE-Cords.
