IBM-AUSTRIA - PC-HW-Support    30 Aug 1999

6899 - Pentium® Pro 200MHz System Board

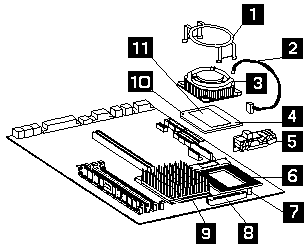

Some models come with two microprocessors.

1.  Fan-sink retaining clip
2.  Fan-sink power cable
3.  Fan-sink
4.  Secondary microprocessor
5.  Voltage Regulator Module (VRM)
6.  Secondary microprocessor socket
7.  Fan-sink power cable connector
8.  VRM connector
9.  Primary microprocessor socket
10.  Pin 1 location
11.  Heat spreader

See Part-Two (fullscreen)
