BIOS Recovery Jumper (J6A1) (8650)

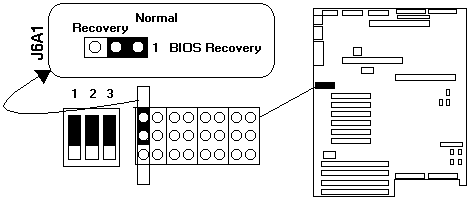

BIOS Recovery Jumper (J6A1)


Jumpers Function
1-2(1) Normal BIOS boot block
2-3 Recovery BIOS boot block


(1) Factory default setting.
