Jumpers (8650)



Jumpers

  1.  J102, (reserved)
  2.  Processor Lever
  3.  Processor socket
  4.  Processor chip
  5.  J107, (reserved)
  6.  Pin-1 on processor chip
  7.  Processor identification
  8.  Pin-1 on processor socket
  9.  J106, (reserved)
  10.  J101, (reserved)

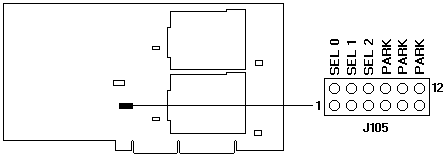

Frequency Select Jumper (J105)


Frequency SEL0 SEL1 SEL2
150/60MHz No Jumper No Jumper No Jumper
180/60MHz Jumper No Jumper No Jumper
210/60MHz No Jumper Jumper No Jumper
240/60MHz Jumper Jumper No Jumper
166/66MHz(1) No Jumper No Jumper Jumper
200/66MHz Jumper No Jumper Jumper
233/66MHz No Jumper Jumper Jumper
266/66MHz Jumper Jumper Jumper


(1) Factory default setting.
