Riser Card (3546)

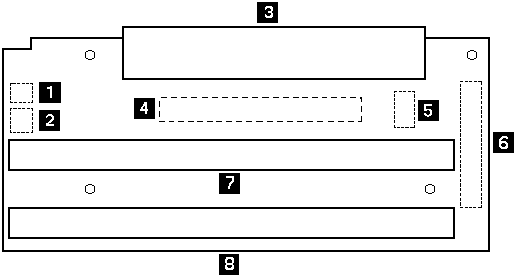

Riser Card
  1.   Sensor Connector (CN57)
  2.   Top Cover Connector (CN58
  3.   Main Card Connector (CN50)
  4.   Internal SCSI Connector (CN55)
  5.   Power Supply Connector (CN56)
  6.   Internal IDE Connector (CN53)
  7.   AT Slot 1
  8.   AT Slot 2
