Front View (3546)

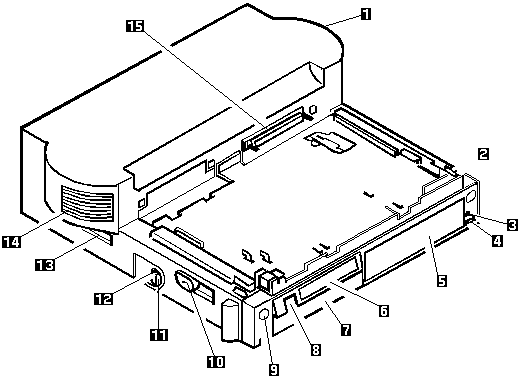

Front View
- Main Cabinet Group
- Tray Unit
- Headphone Jack
- Volume Control
- Half-height Drive
- Status Indicator
- 1-inch-high Drive
- Power Switch
- Eject Switch
- Eject Lever
- Security Lock
- Unlatch Hole
- Reserved (Always keep this lever to the rear)
- Left Speaker
- Notebook Connector (male-type, 240-pin)
