IBM-AUSTRIA - PC-HW-Support    30 Aug 1999

Advanced Diagnostic Tests (3546)

•  How to Run All Tests
•  How to Run the Loop Test
•  How to Run the Keyboard Test
•  How to Run the Audio Test
•  PC Test Card LED

•  Diagnostic Error Indications

1.  Go to the advanced diagnostic screen by pressing Ctrl+A on the basic diagnostic screen.

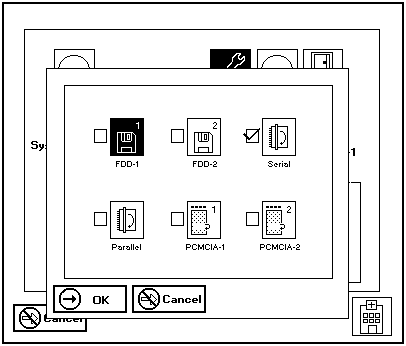

2.  Select Tool to install the tools.
3.  Select a device, press the Spacebar, and  install the tool. Multiple devices can be selected by repeating  this step.

   A OK mark appears for the selected device.




4.  Select OK and press Enter  if the selection is OK.
5.  Select a device and press Enter to start the tests.
