IBM ThinkPad 500 (2603) Models 081 and 171 are obsolete. The following
FRU numbers are being discontinued:
| System Board | 52G7290 |
|---|---|
| Power Card | 59G7922 |
| Base Cover Assembly | 59G7921 |
| AC Adapter | 59G7923 |
| SLA Self-Charging Battery | 59G7924 |
| SLA Rechargeable Battery | 59G7946 |
If you encounter a ThinkPad 500 (2603) Model 081 or 171,
please call 1-800-426-7244 for upgrade
instructions.
System Unit
| Index | FRU P/N |
|---|---|
| 1 Keyboard Assembly | 59G7920 |
| 2 LCD Assembly | 59G7919 |
| 3 Power Button | 59G7937 |
| 4 Power Card | 59G7993 |
| 5 System Board | 65G8741 |
| System Board Bracket | 59G7951 |
| 6 85MB Hard Disk | 59G7915 |
| 170MB Hard Disk | 59G7917 |
| 7 Base Cover Assembly (R) | 59G7995 |
| Connector Door | 59G7936 |
| 8 NiMH Rechargeable Battery | 59G7976 |
| 9 Diskette Drive/Serial Cable | |
| (External) | 59G7925 |
| Diskette Drive/Serial Cable | |
| (Internal) | 59G7952 |
| Hard Disk Cable (Internal) | 59G7927 |
| 10 Video Cable | 59G7926 |
| 11 AC Adapter | 59G7991 |
| 4MB IC DRAM | 8189098 |
| 8MB IC DRAM | 8189099 |
| External Diskette Drive | 59G7918 |
| Tools and Miscellaneous | |
| Tri-Connector Wrap Plug | 72X8546 |
| PC Test Card | 35G4703 |
| Audio Wrap Cable | 66G5180 |
| Screwdriver Kit | 95F3598 |
| Screw Pack | 59G7944 |
| (screws, standoff, | |
| studs, and inserts) |

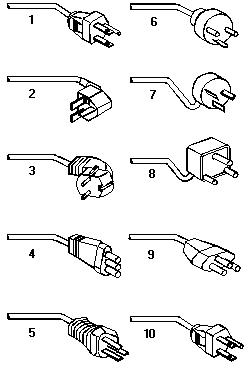

Power Cords
Use the power cord certified for your country.
| Index | FRU P/N |
|---|---|
| 1 Colombia, U.S., Venezuela | 13F9959 |
| Japan, 2-pin | 6454377 |
| Japan, 3-pin | 65F0031 |
| 2 Hong Kong, Singapore, U.K. | 14F0033 |
| 3 France, Germany, Spain | 13F9979 |
| 4 Italy | 14F0069 |
| 5 Australia, New Zealand | 13F9940 |
| 6 Denmark | 13F9997 |
| 7 Israel | 14F0087 |
| 8 Bangladesh, Pakistan, | |
| Sri Lanka, South Africa | 14F0015 |
| 9 Switzerland | 14F0051 |
| 10 Thailand | 1838574 |
