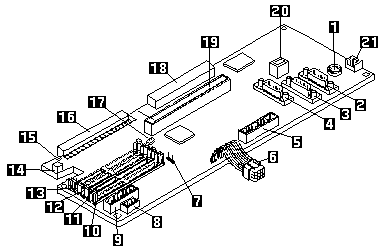

System Board (8573 P75)

1.  Pointing-Device Port Connector
2.  Serial-Port Connector
3.  Parallel-Port Connector
4.  SCSI-Port Connector
5.  Hard-Disk-Drive Connector
6.  Power-Supply Connector
7.  Password-Override Connector
8.  Indicator Connector
9.  Diskette-Drive Connector
10.  Memory-Module Connector 4 (MEM 4)
11.  Memory-Module Connector 3 (MEM 3)
12.  Memory-Module Connector 2 (MEM 2)
13.  Memory-Module Connector 1 (MEM 1)
14.  Speaker Connector
15.  Battery Connector
16.  Processor-Card Connector
17.  Expansion Connector, small
18.  Plasma Display Card Connector
19.  Expansion Connector, large
20.  External Storage-Device Connector
21.  Keyboard Connector
