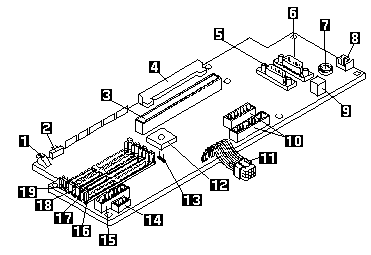

System Board (8573 P70)

1.  Speaker Connector
2.  Battery Connector
3.  Expansion Connector
4.  Plasma-Display-Adapter Connector
5.  Parallel-Port Connector
6.  Serial-Port Connector
7.  Pointing-Device Connector
8.  Keyboard Connector
9.  External Diskette-Drive Connector
10.  Hard-Disk-Drive Connector
11.  Power-Supply Connector
12.  80387 Math Coprocessor Connector
13.  Password-Override Connector
14.  Indicator Connector
15.  Diskette-Drive Connector
16.  Memory-Module Connector 4 (MEM 4)
17.  Memory-Module Connector 3 (MEM 3)
18.  Memory-Module Connector 2 (MEM 2)
19.  Memory-Module Connector 1 (MEM 1)
