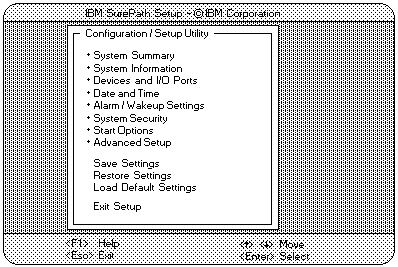

Configuration/Setup Utility Program Menus

•  Security / Password

Pressing F1 displays Help information for a selected menu item.

In the Configuration/Setup Utility program menus, you can accept the configuration changes by viewing and saving the changes, or you can make manual changes and then save the settings.

The following is a quick reference for identifying symbols in the Configuration/Setup Utility program.

•  A bullet () beside a menu item indicates that an additional menu is available.
•  Information enclosed in brackets ([ ]) can be changed.
   You cannot change information that is not surrounded by [ ].
•  A right arrowhead (>) beside a menu item indicates that a configuration change occurred in that category.
   The > might also appear in subsequent menus.
•  An asterisk (*) beside a menu item indicates that a resource conflict exists.

To exit from the Configuration/Setup Utility program:

1.  From the Configuration/Setup Utility program, select Exit Setup or press Esc.
2.  The Exit Setup menu appears. You can save the changes, exit from the Configuration/Setup Utility  program without saving the changes, or return to the Configuration/Setup Utility program menu.
    Use the arrow keys to select the desired option, then, press Enter.

Use the following commands to navigate through the screens and make selections:

Key	Function
	Move between menu items.
< >	Toggle between choices for a menu item.
Enter	Select an item.
Esc	Exit from a menu after viewing or making changes.
F1	Get help on a selected menu item.

System Summary: Select this choice to display configuration information, such as the type and speed of the microprocessor, and the amount of memory.
Changes that you make to configuration settings appear on this summary screen.
You cannot edit the fields on this screen. If you need to change the configuration settings, you must make the changes from the applicable menu choices.

Product Data: Select this choice to view the machine type and model, the system serial number, the system board identifier, and the revision level, issue date, or BIOS Mode of the flash EEPROM (BIOS).

Devices and I/O Ports: Software recognizes ports from their port assignments.
Each port must have a unique port assignment. The Configuration/Setup Utility program normally handles this, but you might have special hardware or software that requires you to change these assignments.

Select the Devices and I/O Ports choice to view or change the assignments for devices and input/output ports.

You can add serial ports by installing a serial adapter in an expansion slot.
See the documentation that comes with the serial adapter for information about port assignments.

To display or change the port assignments:

1.  From the Configuration/Setup Utility program menu, select Devices and I/O Ports, then, press Enter.
2.  The Devices and I/O Ports menu appears.
3.  Select a device or port. If necessary, press Enter to display an additional menu.
4.  Use the Left Arrow (<) or Right Arrow (>) key to advance through the settings.

Start Options: Select this choice to view and change settings for device startup sequence, keyboard speed, virus detection, various power-on options, and other features.

You can control the startup sequence of the devices in the server. Each time that you power-on the server, it checks the devices as it looks for the operating system.
The order in which the system checks the devices is the device-startup sequence.

Note: The default startup sequence is:

1.  CD-ROM drive
2.  Diskette drive
3.  Hard disk drive

To set the startup sequence:

1.  From the Configuration/Setup Utility program menu, select Start Options, then, press Enter.
2.  The Start Options menu appears.
3.  Select Startup Sequence, then, press Enter.
4.  Select the sequence and devices from the choices provided.
5.  If Automatic Power On Startup Sequence is Enabled , select the sequence and devices from the choices provided.

To set the power-on status:

1.  From the Configuration/Setup Utility program menu, select Start Options, then, press Enter.
2.  The Start Options menu appears.
3.  Select Startup Sequence, then, press Enter.
4.  Select Power-on Status.
5.  Select the power-on status from the choices provided.

Date and Time: Select this choice to set the system date and time.
The system time is in a 24-hour format: hour/minute/second.
The system date is in standard format for your country or region.
For example, in the United States, the format is MM/DD/YYYY (Month/Day/Year).

To set the date and time:

1.  From the Configuration/Setup Utility program menu, select Date and Time, then, press Enter.
2.  The Date and Time menu appears.
3.  Use the Left Arrow (<) or Right Arrow (>) key to advance through each data field.
4.  Type the new information, the system saves the information as you enter it.
