I/O Board / I/O Function Card / Memory / Processor - Component Locations (Netfinity 7000-M10 - Type 8680)
I/O Board Component Locations >
I/O Board LEDs >
1 32 bit Slot Reset LED (Slots 6-10)
2 SMI LED
3 Power Supply Power Good LED
4 Reserved
5 System Power Good LED
6 64 bit Slot Reset LED (Slots 1-5)
7 System NMI LED
8 Secondary PCI Bus SERR
(Adaptec, system mgmt card, video)
9 32 bit Slot Reset LED (Slots 11-12)
10 Secondary PCI Bus PERR
(Adaptec, system mgmt card, video)
11 SERR on 64 bit PCI (Slots 1-5)
12 PERR on 64 bit PCI (Slots 1-5)
13 PERR on 32 bit PCI (Slots 11-12)
14 PERR on 32 bit PCI (Slots 6-10)
15 SERR on 32 bit PCI (Slots 6-10)
16 SERR on 32 bit PCI (Slots 11-12)
I/O Function Card Component Locations >
Memory Board Component Locations >

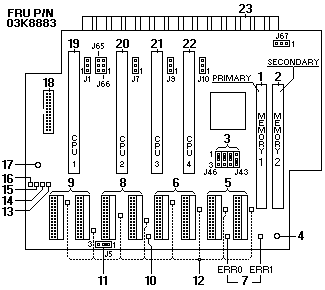

Processor Board Component Locations >
Processor Board LEDs (LEDs - 7)
| ERR0/ERR1 (7) |
FRU/Action |
|
| Off/Off |
N/A |
| (No error) |
|
| On/Off |
1. Processor Board |
| |
2. I/O Board |
|
| Off/On |
1. DIMM |
| (ECC error) |
2. Memory Board |
| |
3. Processor Board |
|
| On/On |
1. Processor Board |
| (Host Bus error) |
2. Processor |
Advanced System Mgmt. PCI Adapter
See Part-Two (fullscreen)
