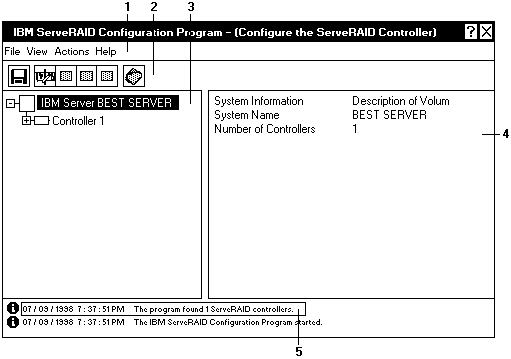

ServeRAID Configuration Program

1.  Menu Bar Provides standard File, View, Actions, and  Help pull-down menus. See 'Menu Bar' for more information.
2.  Tool Bar Provides quick-path icons for common tasks.  The icons from left to right are Save the  Configuration Event Log, Configure the  ServeRAID Controller, Configure for  Clustering, Scan for New or Removed Ready  Drives, Create an Array, and Help. See 'Tool Bar' for more information.

    Provides an expandable tree view of your  ServeRAID subsystem. You will perform  most of your ServeRAID configuration and  maintenance tasks by first selecting the  ServeRAID controller, array, logical drive,  hot-spare drive, or physical drive objects from this Main Tree.

3.  Main Panel Provides specific device information or  configuration instructions. When the  configuration program is in the Information  mode and you select an object from the Main  Tree, detailed information about the object  appears in this panel. When the  configuration program is in the Configuration  mode, the instructions needed to configure  your ServeRAID subsystem appear in this panel.
4.  Event Viewer Provides advisory and progressive-status  information and messages during the  ServeRAID configuration process. Each  message appears with a time stamp, a date  stamp, and an icon that classifies the severity  of the event. Attention messages identify  potential data-loss situations, and Fatal  messages inform you when a failure has occurred.
