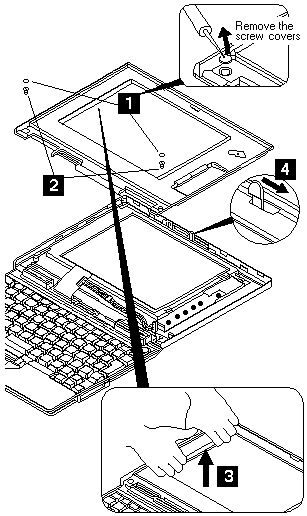

-Attention- Be careful when lifting the bezel cover loose.
The plastic tabs that hold it securely to the LCD unit are easily damaged.
| Step | Size (Quantity) | Color | Torque | Length |
|---|---|---|---|---|
| 2 | M2.5 (2) | Black | 3 kgcm | 4.0 mm |
NOTE: Make sure you use the correct screw and tighten the
screw to the torque specified.
