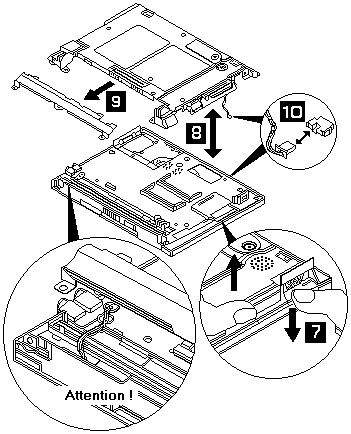

Be careful when assembling the bottom cover and the battery
shield not to pinch the cables.

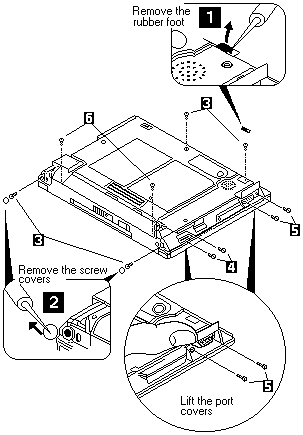

| Step | Size (Quantity) | Color | Torque | Length |
|---|---|---|---|---|
| 3 | M2.5 (4) | Black | 3 kgcm | 6.0 mm |
| 4 | M2.0 (2) | Silver | 3 kgcm | 4.0 mm |
| 5 | Hex (2) | Silver | 3 kgcm | 5.0 mm |
| 6 | M2.5 (2) | Black | 3 kgcm | 8.0 mm |
NOTE: Make sure you use the correct screw and tighten the
screw to the torque specified.
