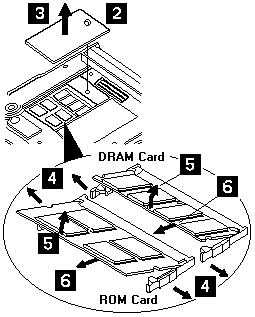

-Attention- Remove all power sources from the WorkPad z50 before
replacing the ROM/DRAM card.
| Step | Size (Quantity) | Color | Torque | Length |
|---|---|---|---|---|
| 2 | M2.5 (1) | Black | 3 kgcm | 4.0 mm |
NOTE: You can loosen the captive screw in step 2,
but cannot remove it from the ROM/DRAM card cover.
