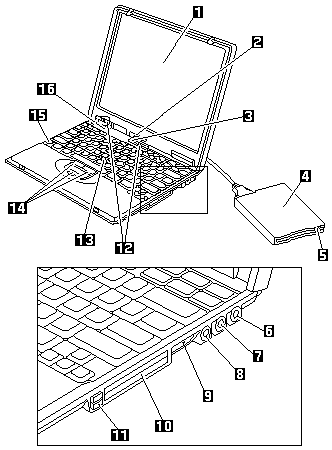

Front View (TP 570 - 2644)



Front View (TP 570 - 2644)
  1.  LCD panel
  2.  Brightness control
  3.  Built-in microphone
  4.  External diskette drive
  5.  Diskette eject button
  6.  Headphone jack
  7.  Line-In jack
  8.  Microphone jack
  9.  Reset switch
  10.   PC Card slots
  11.   PC Card eject button
  12.   Status indicator
  13.   TrackPoint
  14.   Click buttons
  15.   Fn Key
  16.   Suspend switch
