LCD Panel (TP 570 - 2644)



LCD Panel

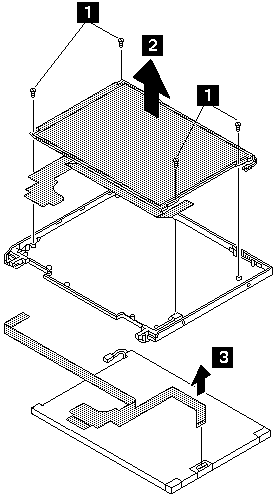

13.1-Inch XGA TFT LCD



Step Screw (Quantity) Color Torque
1 M2.5 x 3mm (2) Yellow 4 kgcm
3 M2.5 x 3mm (2) Yellow 4 kgcm



Step Screw (Quantity) Color Torque
4 M2.5 x 3mm
small head (2)
Yellow 4 kgcm




12.1-Inch SVGA TFT LCD



Step Screw (Quantity) Color Torque
1 M2.5 x 3mm (4) Yellow 4 kgcm
