DIMM and DIMM Cover
DIMM and DIMM Cover
| Step |
Size (Quantity) |
Head & Color |
Torque |
Memo |

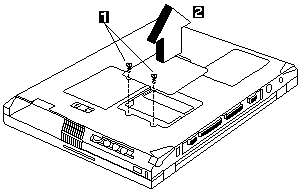

| 1 |
M2x5L (2) |
Bind head, black |
1.6 kgf-cm |
|
NOTE: The screw cannot be seperated from the DIMM door.

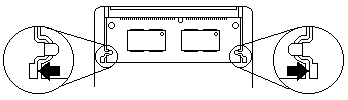

To install the DIMM:
With the notched end of the DIMM toward the right side of the socket,
insert the DIMM, at an angle of approximately 20°, into the socket, then press it firmly.
Pivot the DIMM until it snaps into place.
