Before FRU Removals and Replacements
Before FRU Removals and Replacements

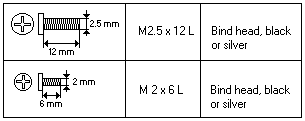

Screw Type Example Explanation
Note: Some screws have nylok paste (on the grooves) for better friction and
increased stability.
Some screws have bracket supports.
FPC Cable Connector Type
Unplugging the Cable: To unplug the cable, first unlock the connector
by pulling up the two clasps on both sides of the connector with a plastic stick. Then carefully
pull out the cable from the connector.
Plugging the Cable: To plug the cable back, first make sure that the connector
is unlocked, then plug the cable into the connector. With a plastic stick, press the two clasps on
both sides of the connector to secure the cable in place.
