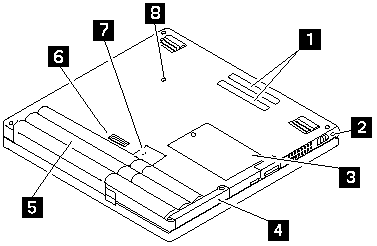

Bottom View (TP 560Z - 2640)



Bottom View

  1.  System-Expansion Connectors
  2.  Security Keyhole
  3.  Memory Slot
  4.  Hard Disk Drive Slot
  5.  Battery Pack
  6.  Battery Pack Latch
  7.  Backup Battery Slot
  8.  Power Shutdown Switch
