DIMM Card and Backup Battery (TP 380XD, 385XD, 380Z - 2635)
DIMM Card and Backup Battery
Safety Notice 4
The lithium battery can cause a fire, explosion, or severe burn.
Do not recharge it, remove its polarized connector, disassemble it, heat it above 100°C (212°F),
incinerate it, or expose its cell contents to water.
Disposeof the battery as required by local ordinances or regulations.
Use only the battery in the appropriate parts listing.
Use of an incorrect battery can result in ignition or explosion of the battery.

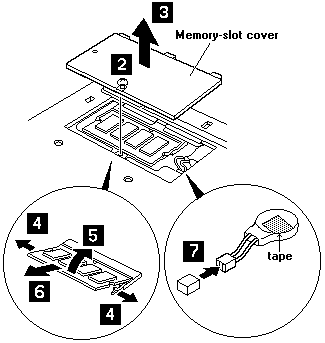

-1- Turn the computer upside down.
2 3 4 5 6: DIMM
2 3 7: Backup battery
When installing - a new backup battery, place it where the old one wad on the
printed circuit board (system board) with double-sided adhesive tape.
NOTE: You can loosen the screw in step -2-, but cannot remove it.
