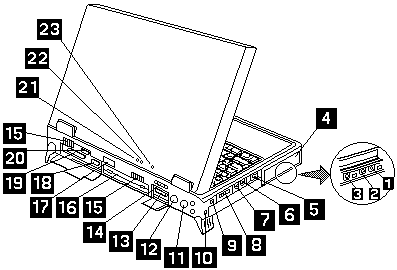

Rear View (TP-770 - 9548/49)
Rear View
If the DVD and Enhanced Video Adapter is installed, -1-, -2-, -3- are available.
- Video-in port
- Video-out port
- Modem/Fax port
- Reserved
- Battery pack
- Volume control
- Microphone/line-in jack
- Headphone jack
- Power Switch
- Reset Switch
- Security keyhole
- AC power jack
- External input device port
- Serial port
- Universal serial (USB) port
- Fan louvers
- System expansion port
- Rear Infrared (IR) port
- External Display port
- Parallel port
- External Diskette drive
- Power-On indicator
- Suspend indicator
- Charge indicator
