1050 Backup Battery and DIMM (TP-770 - 9548/49)

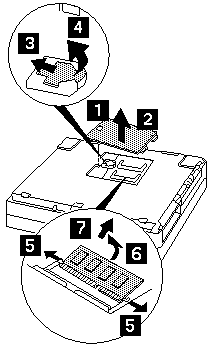

Backup Battery and DIMM


1 2 :DIMM cover
1 2 3 4 :Backup Battery
1 2 5 6 7 :DIMM

NOTE: Only loosen the screw in step 2




Step Size (Quantity) Color Torque
1 Cannot be removed - 4 kgcm
