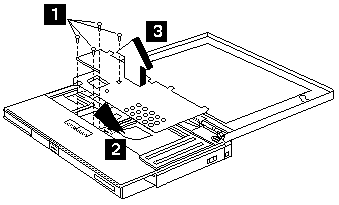

Thermal Plate / CPU (2600-310/310D/310E/310ED)

•  Hinge Covers
•  Keyboard Unit

Step	Size (Quantity)	Head and Color	Memo
1	M2.5x18L (4)	Pan head, black

NOTE: Be sure to use the correct screw when replacing.

CPU

1.  Insert a flat-blade screwdriver into the opening at the left end of the  socket and push towards the other end of the socket.
2.  Pull out the CPU, then insert the replacement CPU.
    Ensure the CPU is properly aligned before pressing it into the socket.
3.  Insert a flat-blade screwdriver into the opening at the right end of the  socket and push towards the other end of the socket.
