IBM-AUSTRIA - PC-HW-Support    30 Aug 1999

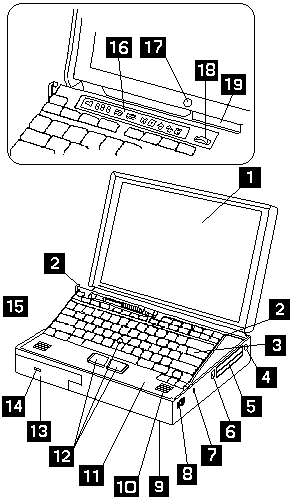

Front View (765D-9546 765L-9547)

1.  LCD
2.  Keyboard Risers
3.  Auto tilt keyboard
4.  External-input-device connector
5.  PC Card slots
6.  PC Card eject button
7.  Security keyhole
8.  Release latches
9.  Front infrared port
10.  Built-in speaker
11.  Front palm rest
12.  TrackPoint III
13.  Removable diskette drive or CD-ROM drive (model-unique)
14.  CD-ROM eject button (CD-ROM model)
15.  Fn key
16.  LCD indicator panel
17.  Built-in microphone
18.  Volume control
19.  Brightness control
