Rear View (2625 365X, XD)

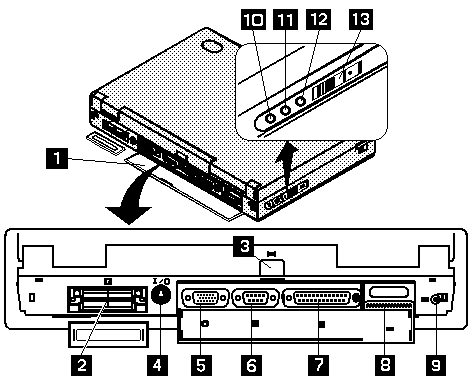

Rear View
  1.  Rear Connector Door
  2.  Connector for Port Replicator
  3.  IR Port
  4.  External Input Device Connector
  5.  External Display Connector
  6.  Serial Connector
  7.  Parallel Connector
  8.  External Diskette Drive Connector
  9.  Power Jack
  10.  Line-out/Headphone Jack
  11.  Line-in Jack
  12.  Microphone Jack
  13.  Power Switch
