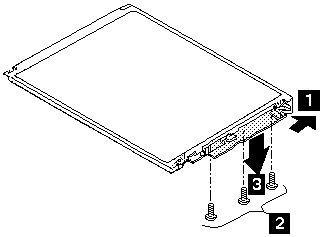

DSTN Panel
+----+----+-------+
|Step|Qty |Torque | Screw No.
+----+----+-------+
2 3 3kgcm
-------------------
NOTE: Make sure you use the correct screw, and tighten
it firmly to the torque shown in the table if you have a torque screwdriver.
Never use a screw that you removed. Use a new one. Make sure the screw is tightened firmly.
(see Screw Tightening Information
if you do not have a torque screwdriver.)

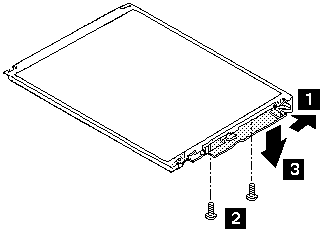

TFT Panel
+----+----+-------+
|Step|Qty |Torque | Screw No.
+----+----+-------+
2 3 3kgcm
-------------------
NOTE: Make sure you use the correct screw, and tighten
it firmly to the torque shown in the table if you have a torque screwdriver.
Never use a screw that you removed. Use a new one. Make sure the screw is tightened firmly.
(see Screw Tightening Information
if you do not have a torque screwdriver.)
When replacing Connect the LCD connector to the inverter card by
lining them up straight:
