| Index | FRU P/N |
|---|---|
| 1 Connector cover | 73H7450 |
| 2 Rear cover | 39H7441 |
| 3 Bezel (See Upper cover group) | |
| 4 Half-height bay frame | 82H6729 |
| 5 Cable group | 73H7453 |
| 6 Riser card | 39H7442 |
| 7 Main card assembly | 39H7443 |
| 8 Audio card | 39H7444 |
| 9 Base cover | 39H7439 |
| 10 Speaker assembly | 39H7446 |
| 11 Shield cover (See Main card assembly) | |
| 12 Power supply (See Power supply group) | |
| 13 Bracket (See Power supply group) | |
| 14 Upper cover (See Upper cover group) | |
| 15 UltraBay tray (See UltraBay group) | |
| 16 Blank bezel FDD bezel and CD-ROM bezel | |
| (See Upper cover group) | |
| 17 Frame (See UltraBay group) | |
| 18 Device tray | 82H6728 |
| 19 Blank bezel (See Upper cover group) | |
| Miscellaneous kit | 39H7447 |
| Power supply group | 39H7438 |
| (Includes the following:) | |
| Power supply | |
| Bracket | |
| SelectaDock Base Model I | 39H7416 |
| UltraBay group | 82H6727 |
| (Includes the following:) | |
| UltraBay tray | |
| Blank bezel | |
| Frame | |
| Upper cover group | 39H7440 |
| (Includes the following:) | |
| Bezel | |
| Upper cover | |
| Indicator | |
| Options | |
| Bracket and bezel | 84G1291 |
| Option diskette | 73H9454 |
| Option 4x SCSI CD-ROM (for Dock II) | |
| (OPT P/N 06H9088) | 06H9090 |
| Audio Cable | 06H9091 |
| Shelf | 84G3631 |
| Tape drive kit | 84G1290 |
| Tray cover | 84G3632 |

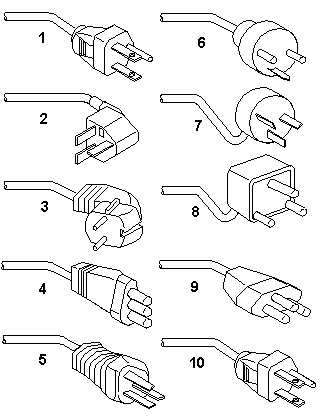

Power Cords
Use the power cord certified for your country.
| 1 Colombia, U.S., Venezuela | 13F9959 |
|---|---|
| 1 Japan, 2-pin | 6454377 |
| 1 Japan, 3-pin | 65F0031 |
| 2 Hong Kong, Singapore, U.K. | 14F0033 |
| 3 France, Germany, Spain | 13F9979 |
| 4 Italy | 14F0069 |
| 5 Australia, New Zealand | 13F9940 |
| 6 Denmark | 13F9997 |
| 7 Israel | 14F0087 |
| 8 Bangladesh, Pakistan, Sri Lanka, | |
| South Africa | 14F0015 |
| 9 Switzerland | 14F0051 |
| 10 Thailand | 1838574 |
