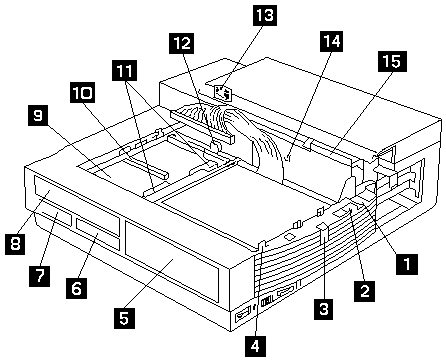

Front View (SelectaDock II - III)

1.  Multiuser lock
2.  PC Card lock
3.  Port replicator lock (SelectaDock base lock)
4.  Docking guide
5.  Device space (Half-height bay)
6.  Status indicators
7.  Device eject button (UltraBay tray eject hole)
8.  UltraBay II (1-inch-high bay)
9.  UltraBay tray
10.  FDD connector
11.  HDD connector
12.  UltraBay tray lock
13.  MicroSaver lock hole
14.  Game switch
15.  Docking connector

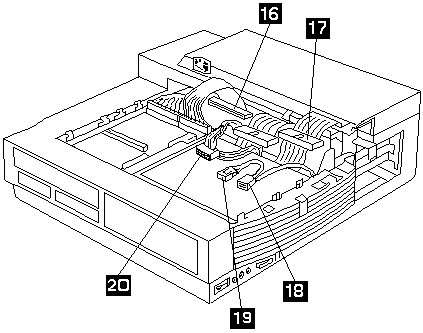

16.  IDE connector
17.  Internal SCSI connector
18.  Audio device connector
19.  Audio device connector
20.  Power supply connector
