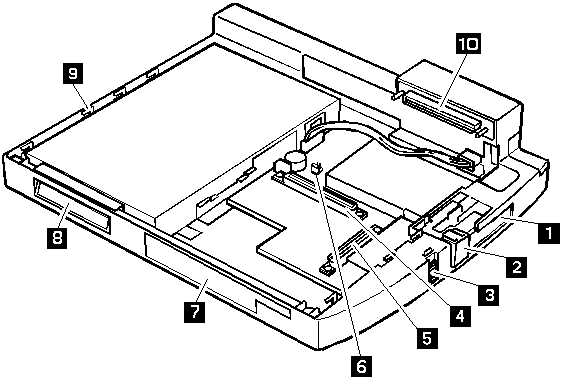

Front View (3547)



Front View
  1.  PCMCIA Slot
  2.  PC Card Lock Slide
  3.  SelectaDock Base Model I Lock
  4.  UltraBay Connector 1
  5.  UltraBay Connector 2
  6.  Feature Jumper
  7.  Blank Bezel
  8.  Status Indicator
  9.  Docking Guide
  10.  Docking Connector
