System Front View (2625)

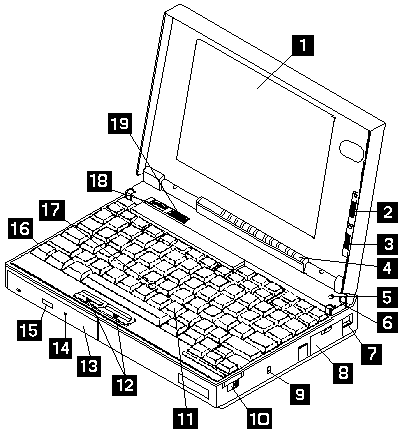

System Front View
  1.  Color LCD Screen
  2.  Contrast Control
  3.  Brightness Control
  4.  Status Indicator
  5.  Built in Microphone
  6.  LCD Suspend Switch
  7.  PCMCIA Release Levers
  8.  PCMCIA Slots
  9.  Locking Device Keyhole
  10.  LCD and Keyboard Latch
  11.  Keyboard
  12.  Click Buttons
  13.  CD-ROM or Diskette Drive
  14.  Mechanical CD-ROM Eject Button
  15.  Electronic CD-ROM Eject Button
  16.  Fn Key
  17.  TrackPoint
  18.  Speaker Volume Control
  19.  Built in Speaker
