1055 Mylar Cover (2625)



1055 Mylar Cover

NOTE: The ThinkPad 365C, CD, CS, and CSD Model mylar cover is not secured with screws and can be easily removed after raising the keyboard.

The ThinkPad 365E, ED Model mylar cover is secured with screws. The following procedure is for ThinkPad 365E, ED Models only.

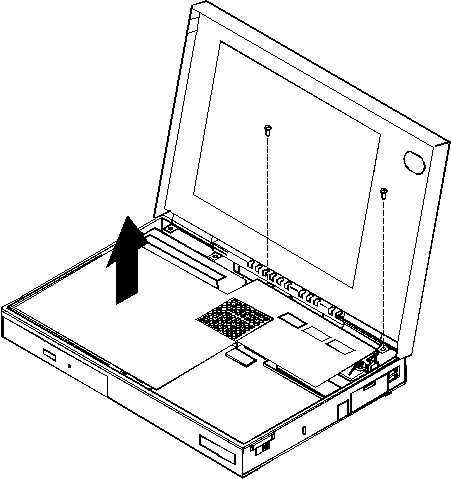

  1.  Remove the two screws as shown.
  2.  Carefully remove the mylar cover.



  During removal and replacement procedures, make sure the Mylar Cover does not interfere with the LCD Suspend Switch.
