System Board Bottom View (2523 HDD Model)

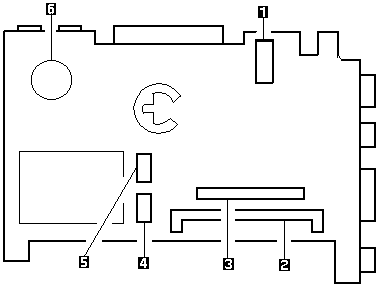

System Board Bottom View (HDD Model)

  1.  Inverter Card Connector
  2.  SIMM Card Connector
  3.  DC/DC Card Connector
  4.  HDD Connector
  5.  HDD Connector
  6.  Speaker
